Model | HY-5299 |
Effective Pixels | SONY 12MP CMOS 1/2.33 IMX 4K SENSOR |
Resolution | 4K/2K/1080P 1080P（USB） |
Sensor Size | 1/2.33inch |
Pixel Size | 1.55 × 1.55μm |
Image Resolution | 4032 × 3024 (12MP) (16:9) |
Frame rate | 3840x2160 30@FPS (4K) 2880x2160 60@FPS (4K) |
Image Format | JPEG |
WaveLength[nm] | 400nm~700nm |
Frame Fate | 3840×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS |
Lens Fype | C / CS |
Timing Photo/Record | Support Timing Photo/Record |
Storage | TF Card, Max 256G |
PC Support | Windows / Mac / Linux System PC Software with Measuring Function |
Image Measurement | Support HAYEAR Measurement |
Language | EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP |
Output Interface | HDMI/USB Standard usb2.0 interface (Type B) |
Image Scaling | 7-Fold zoom |
Transverse and vertical line | Support multi-color, 5 pcs of transverse lines/vertical lines, movable |
Encode | H.264 /H.265 (High Profile) |
Video format | MP4 |
Input Voltage | DC 12V 1A |
Exposure | Auto/Manual, value adjustable |

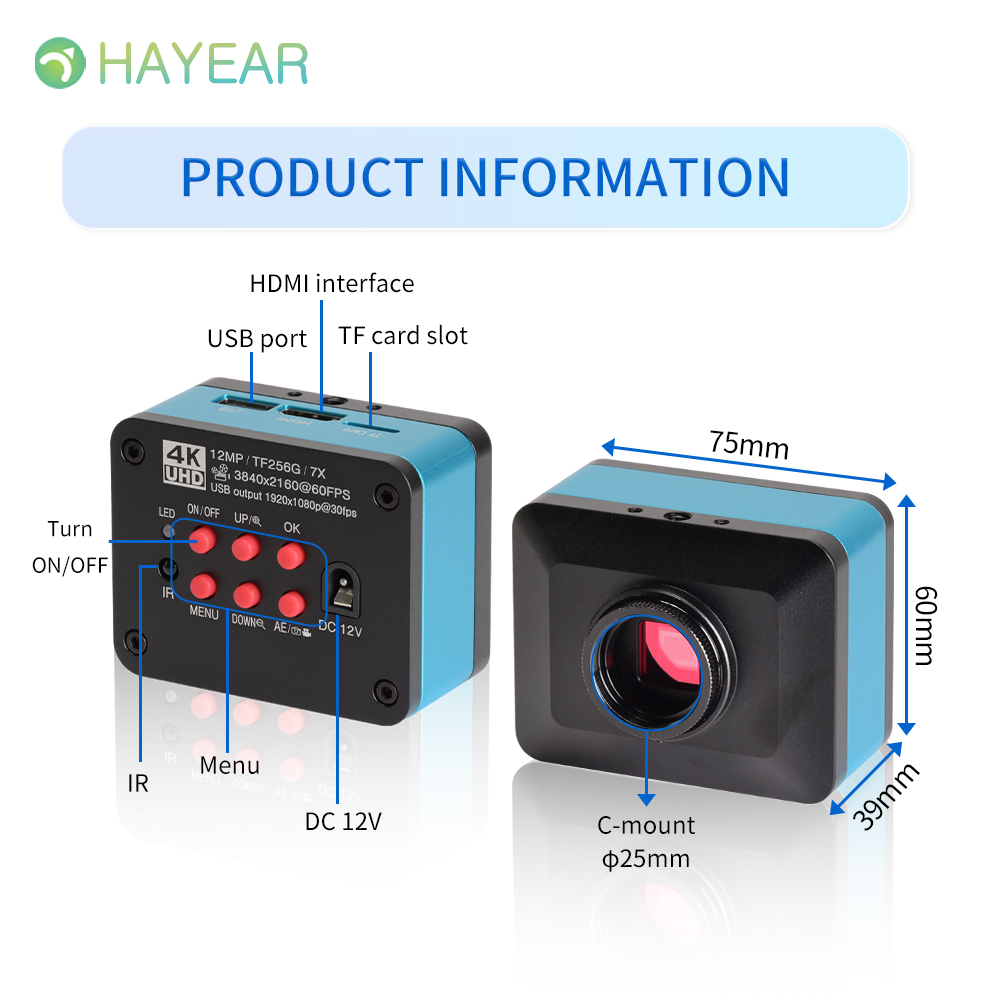

Size | 75×60×39mm(LxWxH) |
