14MP HDMI 1080P HD USB Digital Industry Video Inspection Microscope Camera Set TF Card Video Recorder HY-2307

5315 Reviews

Model : HY-2307

SKU: 0911183457


US $115.00

- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time


1. PC Support : Windows / Mac / Linux system
2. For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3. When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4. when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

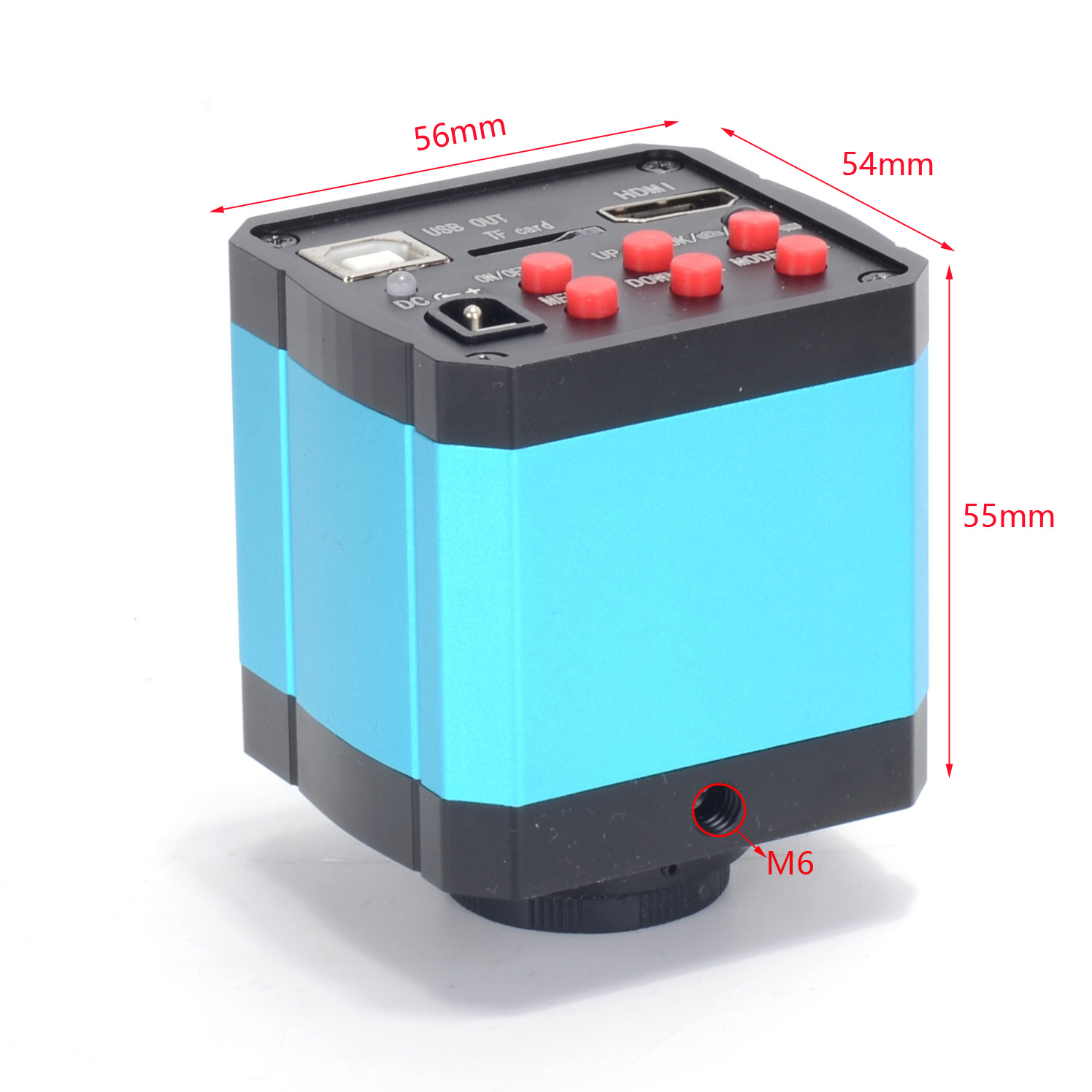

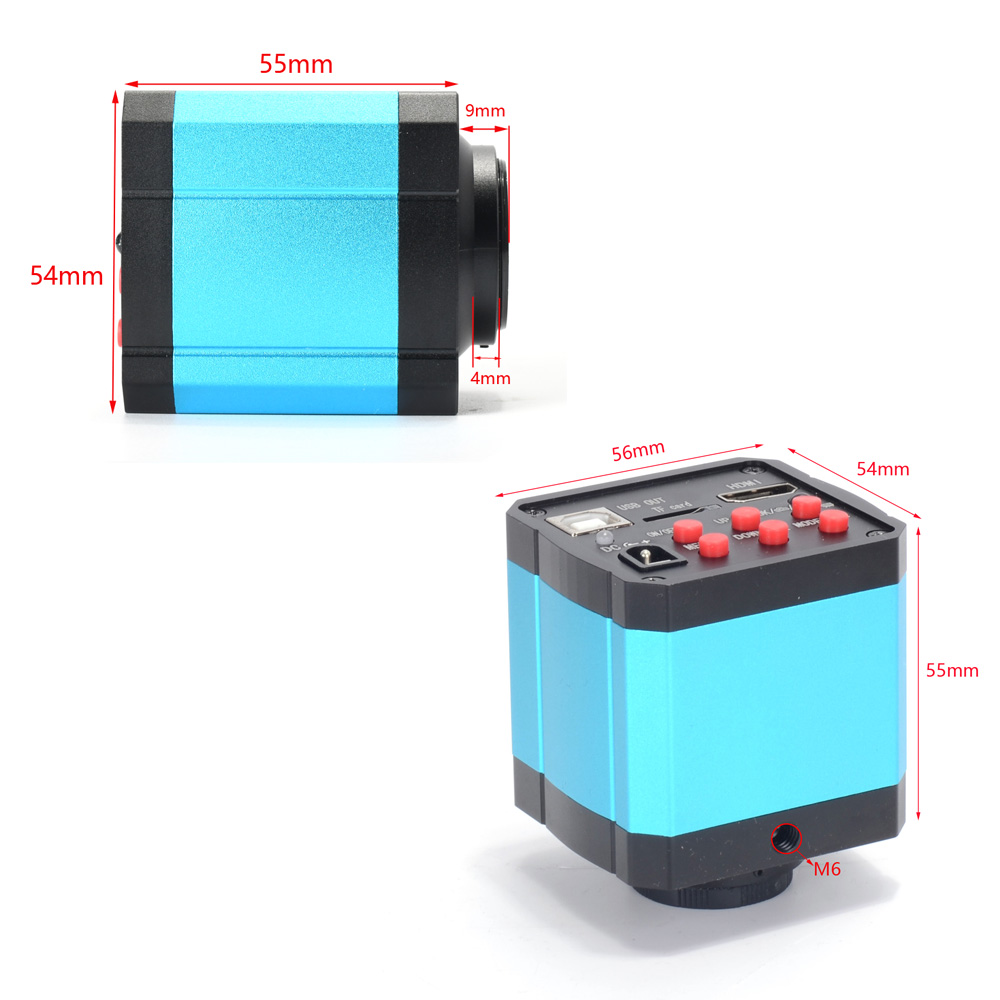

Model: Camera with HDMI USB2.0 two output
Image format:JPG
Image resolution: 4608x3456 (for TF card)  1920x1080@60FPS(for TF card)
Video format: MP4(for TF card)
Video recorder: 1920x1080 @ 60FPS (for TF Card)
USB Video resolution:1920x1080 @ 30FPS
White Balance: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Line: different color,5 horizontal line , 5 vertical line,any positions
Image sensor:16 megapixel Panasonic sensor 1/2.33 inch
Effective pixel:16 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Lens:CS for test, custom provide
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 128G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)

Package including:
1 x microscope camera
1 x 12V power supply
1 x remote control
1 x USB line
