8MP USB Type-C Digital Eyepiece Camera Microscope Industrial Video Camera

1838 Reviews

Model : HY-800M


SKU: 2307154828



US $115.00

QTY:
- +
Shipping: US$0.00
Estimated Delivery on Please select Express Arrival time = dispatch + shipping time

Model

HY-800M

Name

4K Tpye-C USB2.0 color 8MP UVC Digital Camera

Image Sensor

SONY 1/2.3" Color IMX377 CMOS Image sensor

Sensor size

1.55μmH×1.55μm(V)

Pixel size

@30FPS

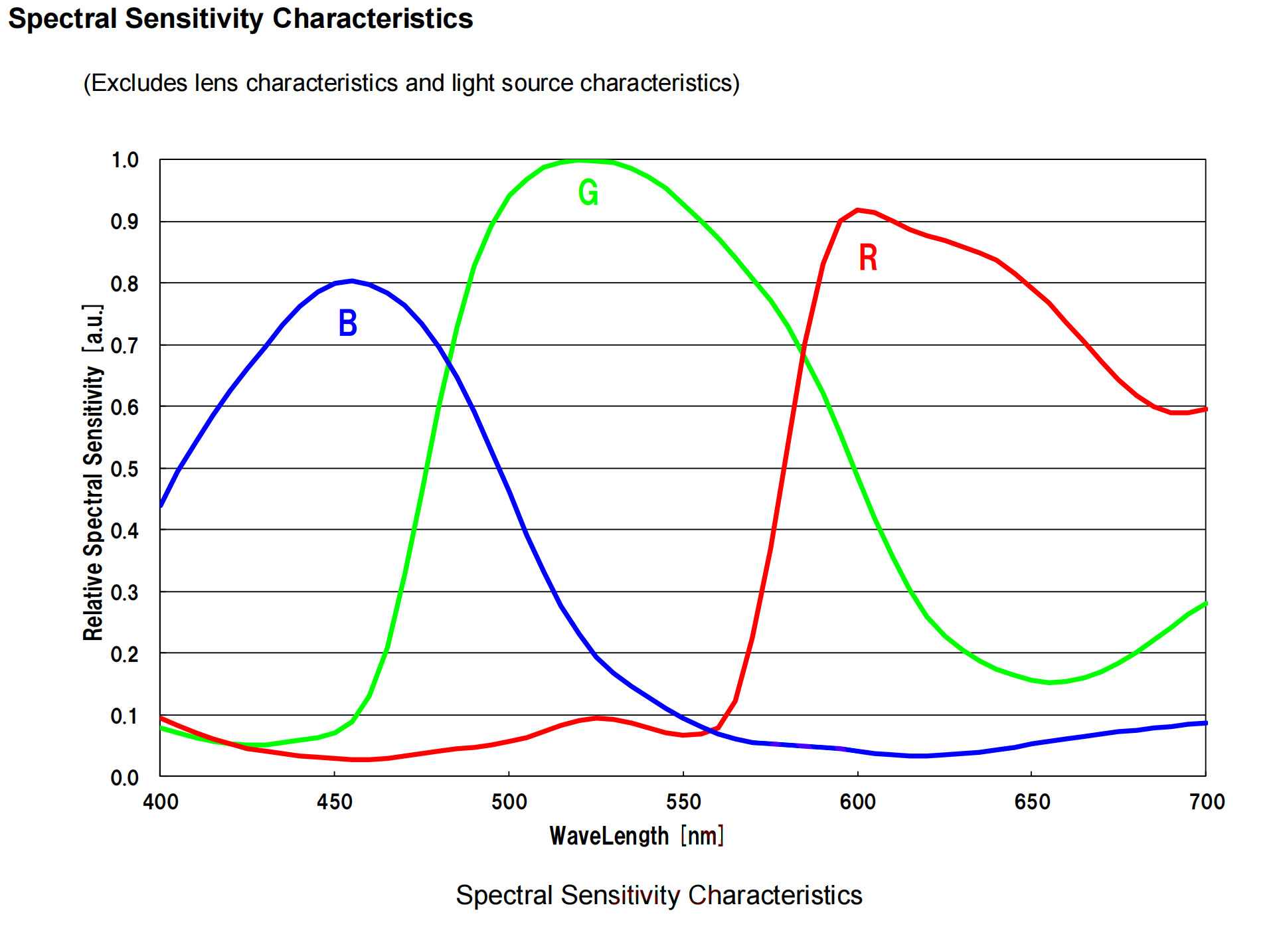

Spectral response

400nm700nm

Scanning method

Progressive scanning, real 8MP image sensor no compression.

Resolution

3840x2160;2592x1944;2084x1536;1920x1080;1280x720;640x480

Image format

MJPEG

 YUY

Video recording

3840x2160 @ 25fps;  2592x1944 @ 25fps;

2084x1536 @ 25fps;  1920x1080 @ 25fps;

1280x720 @ 25fps;     800x600 @ 25fps

640x480 HDR @ 25fps;

3840x2160 @ 1fps;  2592x1944 @ 1fps;

2084x1536 @ 1fps;  1920x1080 @ 5fps;

1280x720 @ 10fps;  800x600 @ 15fps

640x480 HDR @ 15fps;

Dynamic Range

74 dB (Linear) -85 dB (HDR)

Sensitive

2400 mV/Lux-sec

White balance

Auto/Manual

Interface

Type-C 2.0480Mb/s

SNR

42.3dB

Working temperature

-25℃70℃

Storage temperature

-30℃60℃

Preservable parameters

Brightness; Contrast; Color Saturation; Tint;
Sharpness; Gamma; Gain; White Balance; Backlight Contrast; Exposure

Support UVC

USB Video ClassUVC

White balance

Auto/Manual

One-click white balance

Support

Exposure control

Auto/Manual

Eyepiece Support

30.0mm/23.2mm ,30.5mm/23.2mmDiameter

Supports output formats

12-/10-bit RAW RGB

Supports

supports 2x2 binning


ISP clock up to 240MHz

Support System

WinXP/Win7/Win10/win11 ;  Linux / Android

MAC-OS X10.4.8 or later

Support UVC

USB Video Class(UVC)

Support OTG

USB2.0 OTG
